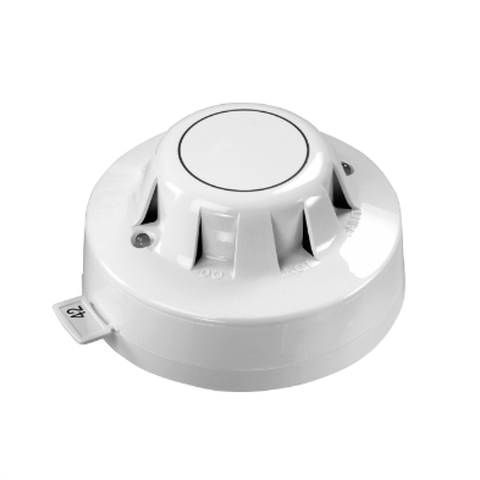

Smoke Detector

Specifications

Applications : Car parks/loading bays Hazardous areas Medium to large buildings Offshore platforms Refineries Warehouses

Fire Type : Fast burning, flaming fires

Protocol Voltage : 5 to 9V peak to peak

Supply Voltage (Vmin-Vmax) : 17 to 28V dc

Operating Temperature : -20 to 40°C

Storage Temperature : -30 to 60°C

Applications : Car parks/loading bays Dusty environments Warehouses, Hotels, Medium to large buildings Offices, Restaurants Retail

Analogue Value : 25 +2/-2

Protocol Voltage : 5 to 9V peak to peak

Supply Voltage (Vmin-Vmax) : 17 to 28V dc

Operating Temperature : -20 to 70°C

Storage Temperature : -30 to 80°C

Applications : Bedrooms

Electrical : Protocol Voltage (Min) : 5V

Protocol Voltage : 5 to 9V peak to peak

Supply Voltage (Vmin-Vmax) : 17 to 28V dc

Operating Temperature : -4 to 140°F

Storage Temperature : -30 to 80°C

Protocol Voltage : 5 to 9V peak to peak

Alarm Current (At 24 Volts) : 4mA

Humidity : 0% to 95% (no condensation or icing)

Operating Temperature : -20 to 60°C

Storage Temperature : -30 to 80°C

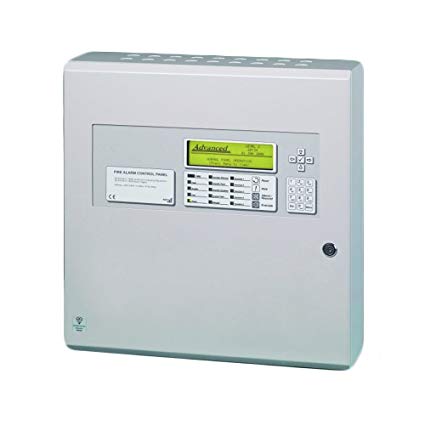

	Specifications
	Base Technology: Dual flash based processors with real time clock, trace diagnostics, pulse communications & programmable languages
	Display: Backlit 240 x 64 Graphical LCD
	LED Indicators: 3 red (2 x Fire, 1 x Alarm), 1 green (Power) & 12 amber (Fault & System)
	Controls: Alpha numeric keypad, navigation keys & system keys for Reset, Mute, Silence/Resound & Evacuate
	Protocols: Apollo/Hochiki ESP, Nittan Evolution or Argus Vega
	Number of Fire Zones: 1000
	Number of loops: Dedicated 2-8 loop control panel
	Devices per loop: Protocol dependent
	Loop Current : 500mA max per loop
	On-Board Sounder Circuits : 8 x 1 Amp programmable
	On-Board Relays: 2 x 1 Amp 30v AC/DC programmable
	Auxiliary Supply : 1 x 24v 500mA
	Open Collector / Logic Outputs: 8 x programmable (via optional 8-way relay card)
	Programmable Switch Inputs: 8 volt free digital inputs
	On Board Power Supply: 5 Amp high efficiency switched mode
	Mains Supply: 230 V Ac (+10%, -15% tolerance) 50 /60 Hz 1.7 Amp
	Battery Capacity: 24v 18 Ah internal. 24v 48 Ah external
	Charger Current: 2.2 Amp DDP monitored, temperature compensated integral charger
	Serial ports : 1 x on-board RS232 connection for PC, modem or portable printer
	Programming : On-board keypad or PC running Windows tools
	Event Log : 1000 Fire & Event + Diagnostic
	Metalwork Options : Flushing Bezel, Ancillary enclosure & Battery box
